Abstract

Stress (Takotsubo) cardiomyopathy (SC) is a cardiomyopathy characterised by transient myocardial dysfunction, commonly triggered by a surge in catecholamine. Electrocardiographic features may mimic other conditions, such as myocardial infarction. We presented two cases of SC and reviewed the electrocardiographic features of this disease entity.

Keywords: electrocardiography, stress cardiomyopathy, ST elevation, Takotsubo, T wave inversion

CASE 1 CLINICAL PRESENTATION

A 64-year-old woman presented with central crushing chest pain associated with acute nausea, diaphoresis and palpitations on Postoperative Day 2 of a right total knee replacement surgery. She had a background history of diabetes mellitus and dyslipidaemia. Physical examination revealed a soft systolic murmur and an oxygen saturation of 90% on room air. What does her electrocardiogram (ECG) show (Fig. 1)?

Fig. 1

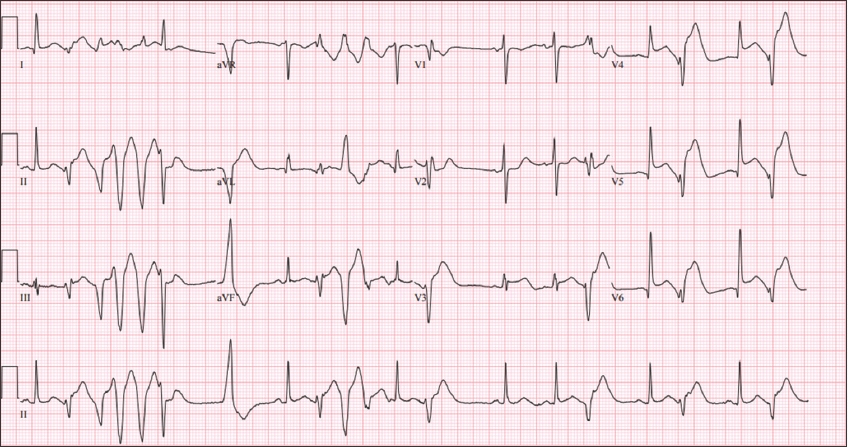

Case 1: ECG of a 64-year-old woman who presented with central crushing chest pain.

ECG INTERPRETATION

ECG shows ST elevation in leads V3–V6. Frequent premature ventricular contractions (PVCs), couplets and salvos of PVCs are seen. There is ST segment depression in aVR and V1. The ST segment in V2 is not elevated.

CLINICAL COURSE

Urgent cardiac catheterisation was performed in view of ongoing chest pain and ST elevation. Coronary angiography showed normal coronary arteries. In view of her hypoxia, computed tomographic pulmonary angiography was performed, which did not demonstrate any pulmonary embolism. Urgent transthoracic echocardiography showed an ejection fraction of 10% with akinesia at the apex and increased myocardial contraction at the base. The patient subsequently developed cardiogenic shock with multiorgan failure and required venoarterial extracorporeal membrane oxygenation (ECMO) as well as renal replacement therapy. The peak troponin I value was 42,151 ng/L (reference: 0–39 ng/L). ECMO was stopped on the fourth day. The patient subsequently improved clinically and was discharged after a prolonged stay. The patient was treated with bisoprolol. Repeat transthoracic echocardiography four months later showed resolution of the wall motion abnormalities and an ejection fraction of 60%.

CASE 2 CLINICAL PRESENTATION

A 35-year-old woman with no significant past medical history was undergoing an elective left hemithyroidectomy for a left thyroid nodule. After anaesthetic induction and upon skin incision, the patient became hypotensive and bradycardic with development of complete heart block (seen on the cardiac monitor). What does the ECG show (Fig. 2)?

Fig. 2

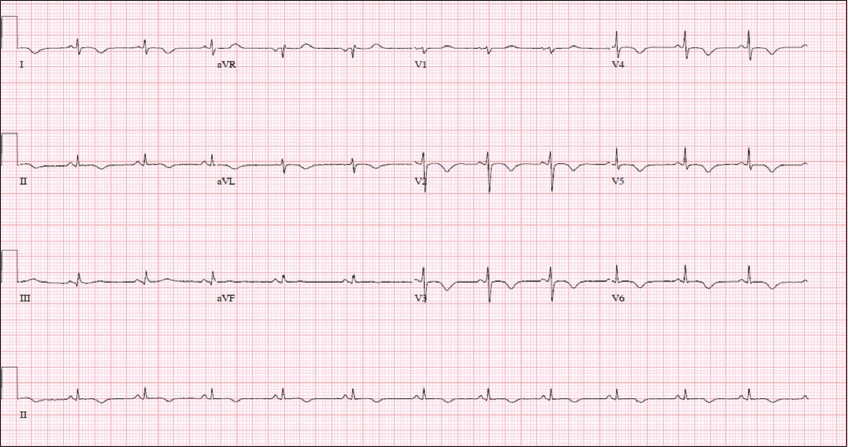

Case 2: ECG of a 35-year-old woman undergoing an elective left hemithyroidectomy for a left thyroid nodule.

ECG INTERPRETATION

The ECG shows widespread T wave inversion in leads V2–V6, I and aVL, as well as in lead II. The ECG is also low voltage (QRS amplitude < 5 mm in the limb leads and < 10 mm in the precordial leads).

CLINICAL COURSE

In view of her cardiogenic shock, an urgent cardiac catheterisation was performed, which demonstrated normal coronary arteries. Left ventriculography showed the presence of a typical apical ballooning pattern of stress cardiomyopathy (Fig. 3). Her peak troponin I level was 5,380 ng/L (reference: 0–39 ng/L). Transthoracic echocardiography showed apical akinesia with the base being relatively unaffected and an ejection fraction of 30%. The patient was treated with lisinopril. Serum and urinary metanephrine levels were normal. Repeat transthoracic echocardiography performed two months after discharge showed resolution of akinesia and no regional wall motion abnormalities, with recovery of ejection fraction to 65%.

Fig. 3

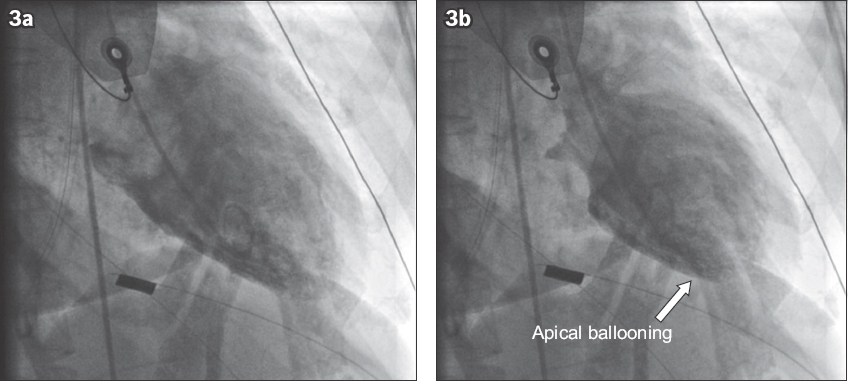

(a) Diastolic and (b) systolic left ventriculograms show apical to mid-ventricular ballooning with basal hyperkinesis.

DISCUSSION

Stress (Takotsubo) cardiomyopathy (SC) is a rare cardiomyopathy typically characterised by transient myocardial dysfunction of the apical or mid-ventricular segments of the left ventricle in the absence of an obstructive coronary anatomy, secondary to a catecholamine surge. The condition is usually self-limiting.(1) The Mayo Clinic diagnostic criteria has been proposed, based on expert consensus, to diagnose the condition and one of the criteria describes new ECG abnormalities (specifically referring to either T wave inversions or ST segment elevations).(1) In stable patients, cardiac magnetic resonance imaging may help to distinguish SC from myocarditis and myocardial infarction, as this imaging modality is able to demonstrate scars and late gadolinium enhancement. In the rest of this paper, we review the literature on the possible ECG manifestations of SC and highlight the myriad of ECG presentations beyond the current existing diagnostic criteria.

Q waves

SC has been associated with a finding of transient or persistent Q wave formation.(1)

QRS complexes

Studies have described QRS complexes in SC that show low voltages and attenuation of the amplitude of QRS complexes (as in Case 2) in serial ECGs due to myocardial oedema, with a corresponding shortening of the QRS duration.(1,2)

ST segment

ST elevation in −aVR (i.e. ST depression in aVR) with various permutations of ST elevation and T wave inversions are characteristic of SC.(3) It is of particular interest that ST elevation seldom affects V1, as the akinetic segments are situated away from the V1 lead.(4)

T waves

SC patients have diffuse T wave inversions extending throughout multiple leads, and the depth of the inversions correlates with the magnitude of myocardial oedema.(4) A positive T wave in aVR and a lack of negative T wave in V1 are highly sensitive and specific for SC.(1) Rarer T wave manifestations have also been reported. A Wellens’ syndrome-type ECG pattern with biphasic T waves has previously been reported and has been attributed to a gradient of myocardial oedema on the left ventricle seen on cardiac magnetic resonance imaging.(5)

QT interval

SC has been associated with abnormalities in ventricular repolarisation, causing a prolongation of the QT interval, and is a known cause of acquired long QT syndrome.(1) QT dispersion and Tpeak-to-Tend are also increased. Reversal of all the above intervals in the chronic phase has been reported.(6)

Arrhythmias

SC patients may present with a variety of tachyarrhythmia and bradyarrhythmia. Tachycardias include atrial fibrillation as well as more serious rhythms such as torsades de pointes (in association with the prolongation of QTc), polymorphic ventricular tachycardia and ventricular fibrillation.(7-10) Bradycardias include conduction blocks of various degrees.(11)

Other ECG presentations

SC may present as a new-onset left bundle branch block mimicking ST elevation myocardial infarction, and this has been reported in up to 9% of patients in one study.(12)

Studies comparing SC with other conditions

Differentiating SC from other conditions, in particular acute myocardial infarction (AMI), is of interest because of the potential implications on therapy upon presentation.(13) A summary of the reported ECG differences between SC and AMI are presented in Table I.(1,4,9,14-17) The ECGs of SC and AMI patients are subdivided into those with ST elevations and those without. It is worth noting that several studies have disputed the use of ECG criteria to differentiate between SC and AMI.(17)

Table I

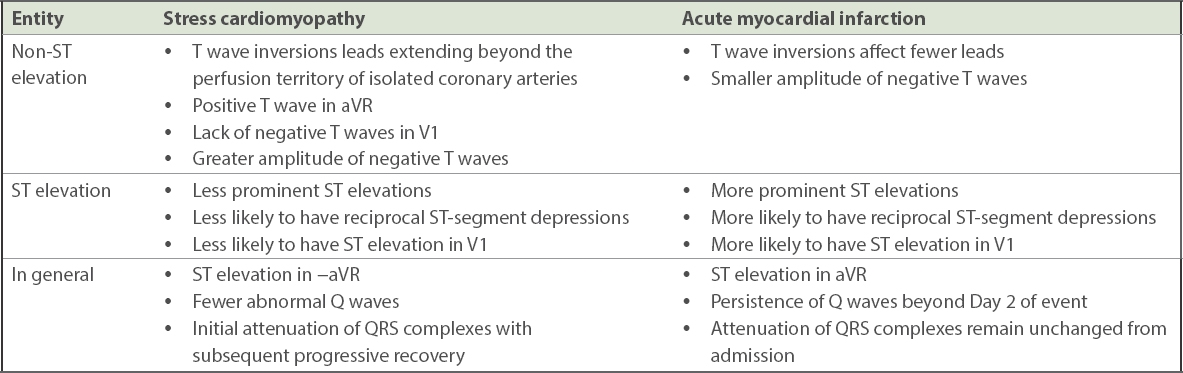

Reported electrocardiographic differences between stress cardiomyopathy and acute myocardial infarction.

Interestingly, the ECG changes of SC may resemble those of acute pericarditis, with more diffuse ST segment elevations, concave ST segment elevations and depressed PR segments.(18) It is postulated that this possibly reflects acute circumferential subepicardial ischaemia in SC.(18)

ECG markers of prognosis

Longer QT intervals are associated with poorer outcomes. These patients are more likely to present with dyspnoea and to have higher levels of N-terminal pro B-type natriuretic peptide. They are also more likely than those with a normal QT interval to require re-hospitalisation, mechanical ventilation and vasopressors for shock, as well as develop arrhythmias and die.(19) Prolonged QRS duration is also associated with higher in-hospital mortality, cardiac death, ventilator use, ventricular arrhythmias and circulatory failure.(20) Other reported adverse prognostic markers include a higher heart rate and larger sum of ST elevations in all 12 leads.(21) Persistent Q waves are a poor prognostic marker.(4) There are no reported differences in clinical complications in patients presenting with ST or non-ST elevation ECGs in SC.(22)

Other considerations

The ECG manifestations of SC could vary depending on the type of SC. The apical or combined apical and mid-ventricular variants have been associated with ST elevations, while the mid-ventricular variants alone have been associated with T wave inversions.(22) ECG changes more often affect all leads in apical variants, while only leads V2 and V3 are affected in the mid-ventricular variants.(23) SC can coexist with other pathologies (e.g. acute pericarditis), complicating ECG interpretation.(24) Ethnic differences in ECG presentations have also been described, with Asian patients having more ST segment elevations as compared to Caucasians.(25) However, there has not been any reported ECG differences between male and female patients.(22)

CONCLUSION

This paper discussed two cases of SC with ECG manifestations. It also described the reported ECG manifestations of SC. Practitioners should take note of these clinical presentations to heighten their suspicion so as to successfully diagnose this cardiomyopathy.
